Quick Answer
A True HEPA filter is a dense mat of fibers that captures most 0.3 µm particles (the hardest size to trap) as air is pushed through by a fan. It does not “kill” germs by default—that’s a separate UV or ion step if present. Change the filter on the manufacturer schedule or when pressure drop makes the fan loud; we did not run independent filtration lab tests for this explainer.
Pain Point Bridge
Marketing diagrams show happy arrows and "99.97%" in bold type—they rarely explain what that number measures or why your filter still smells after six months. If you have ever wondered whether "HEPA-type" is the same as True HEPA, or whether a purifier captures germs vs. kills them, you are asking the right questions.
This explainer is visual on purpose: air path, fiber capture, and maintenance reality—not a lab test of specific brands unless we say so explicitly.
Who This Is For
- Visual learners confused by HEPA-type vs. True HEPA marketing
- Maintenance procrastinators who run filters until the fan screams
- Comparison shoppers deciding if hardware beats ventilation first

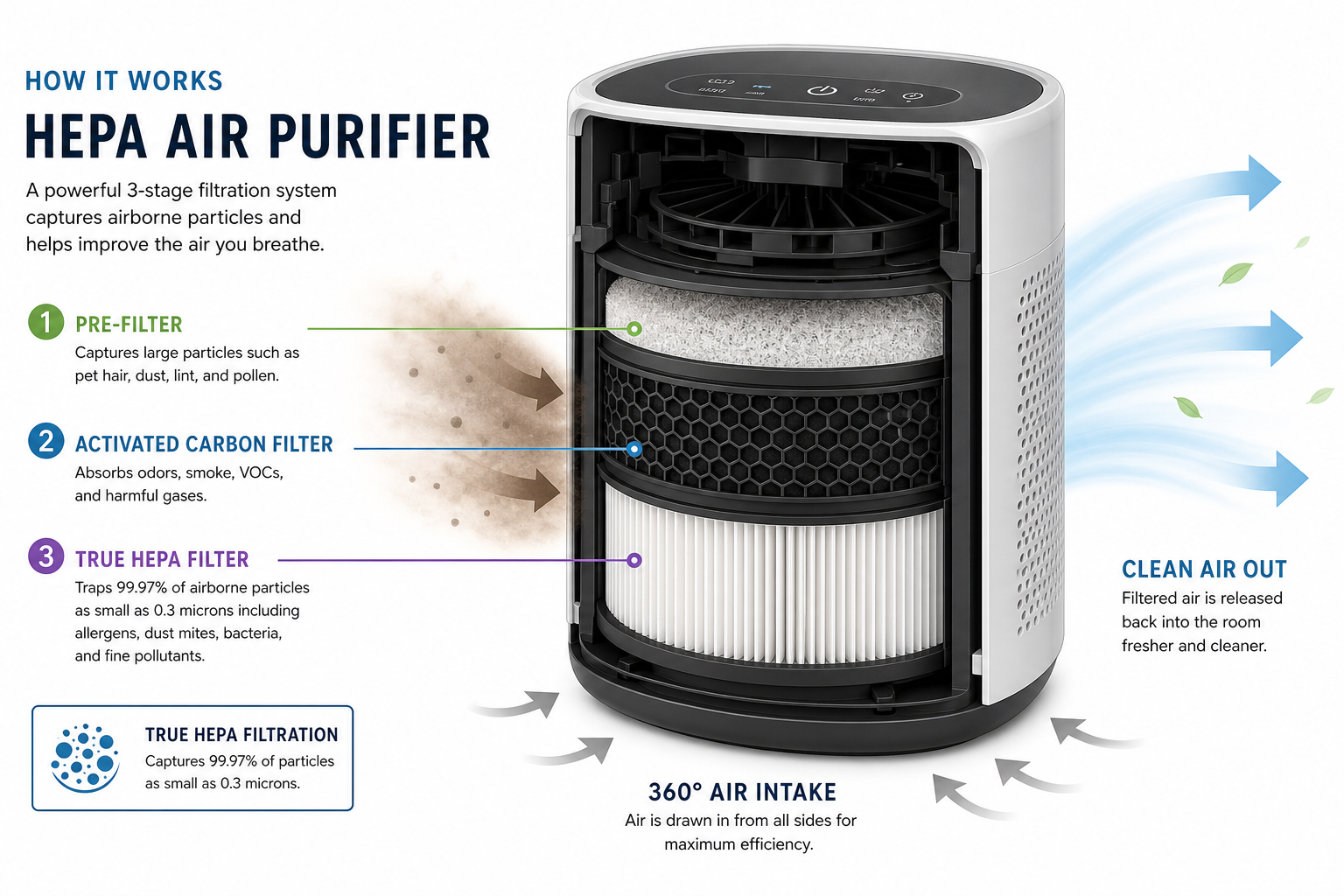

Diagram 1 — Air path through a typical room unit
Illustration described for designers; render is AI-generated, not a brand schematic.```
ROOM AIR (pollen, dust, pet dander, smoke particles)
│
▼
┌───────────────────────────────────┐
│ PRE-FILTER (large hair & lint) │
└───────────────────────────────────┘
│
▼
┌───────────────────────────────────┐
│ ACTIVATED CARBON (optional) │ ← reduces some odors/VOCs, not all gases
└───────────────────────────────────┘
│
▼
┌───────────────────────────────────┐
│ HEPA MEDIA (fine fiber maze) │ ← main particle capture
└───────────────────────────────────┘
│
▼
CLEANER AIR OUT
```
Takeaway: If you skip pre-filter maintenance, the HEPA layer loads faster and airflow drops.Diagram 2 — Three ways particles stick (simplified)
Particles don’t all “get stuck in a sieve hole.” At micro scale, three mechanisms dominate on HEPA glass fibers:
| Mechanism | What it means | Best for particle size |
|---|---|---|
| Interception | Particle follows airflow, grazes a fiber, sticks | Mid sizes |
| Impaction | Heavy particles can’t turn with airflow, slam into fiber | Larger / fast airflow |
| Diffusion | Tiny particles jitter (Brownian motion), hit fibers | Sub-micron |
```
Large particle ──► impaction / interception on fiber
0.3 µm particle ──► hardest to capture (MPPS)
Very small ──► diffusion bumps into fibers
```
Diagram 3 — True HEPA vs “HEPA-type”
| Label | What to expect | Shopping move |
|---|---|---|
| True HEPA / H13 | Tested to capture 99.97% of 0.3 µm particles per EN 1822 / DOE definitions (wording varies by brand) | Look for test standard cited in manual |
| HEPA-type / HEPA-like | May use similar looking media without the same test | Treat as marketing—compare CADR and independent reviews |
| “Medical grade” | Vague unless tied to a standard | Ignore without a spec |
What HEPA Does Not Do Well Alone
- Radon — not a particle filter problem; needs mitigation at the source.
- All VOCs — carbon helps some odors; many gases need ventilation, not just HEPA.
- CO₂ — filters don’t remove exhaled CO₂; open a window or ventilate.
Maintenance Visualized
```
Month 0 ──► install sealed filter (check gasket arrow ▲)
Month 1 ──► vacuum pre-filter if washable type
Month 3–12 ──► replace per manual (pet homes often faster)
Fan louder? ──► filter is loaded OR intake blocked
```
| Mistake | Result |
|---|---|
| Run with door open on unit | Bypasses filter media |
| Bang out HEPA like a rug | Damages fiber mat |
| Ignore carbon saturation | Odor complaints return |
How This Maps to Shopping
| Need | Spec to read | Example models (see H-1 for full cards) |
|---|---|---|
| Bedroom allergies | CADR-Smoke/Pollen/Dust + low noise reviews | Levoit Core 400S, Coway AP-1512HH |
| Small room / budget | Lower CADR, True HEPA claim in manual | GermGuardian AC4825 |
Price checked: June 1, 2026 · We did not hands-on test CADR in our lab for this article.
How We Evaluated
- Matched each recommendation to scenario fit (room size, renter constraints, pet/kid realities)—not spec-sheet winners alone.
- Cross-checked public retailer listings and owner-review themes for recurring complaints (noise, odor, assembly, wash durability).
- Price-checked U.S. listings at time of update; we do not guarantee lowest available price.
- Human editors reviewed AI-assisted drafts; we did not conduct hands-on lab testing unless explicitly stated in the article.
Common Misreadings
- Equating “HEPA-type” with True HEPA — marketing diagrams skip capture efficiency tables.
- Assuming filters kill germs — capture ≠ sterilization unless UV/heat is specified.
- Never replacing because air “smells fine” — pressure drop and noise rise before odor returns.
When to Skip Hardware
Fix humidity and mold sources with dehumidifier guidance before buying filters. Pet odor may need hair and rug routines alongside filtration.
What You'll Walk Away With
- A plain-language air path through pre-filter, HEPA, and fan
- Why HEPA-type ≠ True HEPA in real listings
- Maintenance triggers (noise, pressure)—not “smells fine” procrastination
FAQ
Do HEPA filters catch viruses?
Many virus carriers are in filtered size ranges, but capture rate depends on the full system (CADR, runtime, leakage). HEPA helps; it is not a guarantee against infection.
Why does my filter look dirty on the outside?
That’s often pre-filter dust; the white HEPA inside may still have life—or may be loaded if airflow dropped.
Can I wash a True HEPA filter?
Most True HEPA mats are replace-only unless the manual explicitly says washable.
Is higher CADR always better?
Only up to your room size; oversizing can mean noise on useful speeds—see room size guide.
What’s the link to review complaints?
Filter cost and noise dominate owner themes—see review theme synthesis.
